SOFTWARE

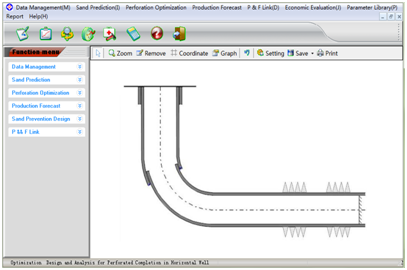

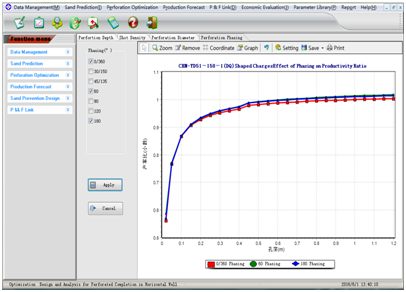

Opt HP

Optimization Design and Analysis for Perforated Completion in Horizontal Well

Opt HP applies to perforated completion design and analysis in horizontal well,by visual modeling of completion and simulated calculation. It can be used in not only single completion, but also segregated ones.

Main Functions

• Sanding prediction
• Skin factor calculation
• Productivity forecast
• Perforating parameter optimization
• Perforating and fracturing link design
• Economic evaluation

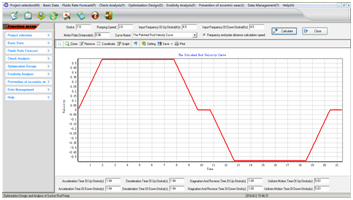

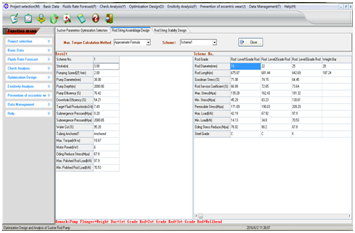

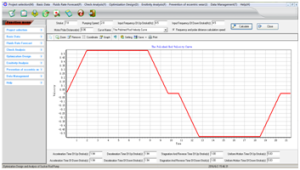

Rally SRP

Optimization Design and Analysis of Sucker Rod Pump

Rally SRP is an Optimum Design and Stimulation of rod pumping system for wells,by building 3D well trajectory model of rod and using three-dimensional (rod, tubing, liquid column) wave equation for production data optimization design, the software could optimize reasonable parameters including pump diameter, stroke, pumping speed and different rod string assemblage, calculating polished rod motion parameters of beam pumping unit and linear motor pumping unit. It can improve productivity and system efficiency of pumping wells.

Main Functions

• Working condition of macro management
• Rod-tubing wear prevention
• Optimization design
• System efficiency analysis
• String drawing

Rally Gas Lift

Optimization Design and Analysis of Gas Lift Well

Rally Gas Lift provides optimization design and analysis for gas lift well, which including coordinated production of oil well, the position and number of gas lift valves, and the technical parameters of valves etc., according to the condition of surface equipment and the well inflow performance. The software can give optimizing design of gas lift by taking both system efficiency and economic benefits into account.

Main Functions

• Gas lift parameters design
• Gas injection parameters sensitivity analysis
• String structure design
• System efficiency analysis
• Economic benefits analysis

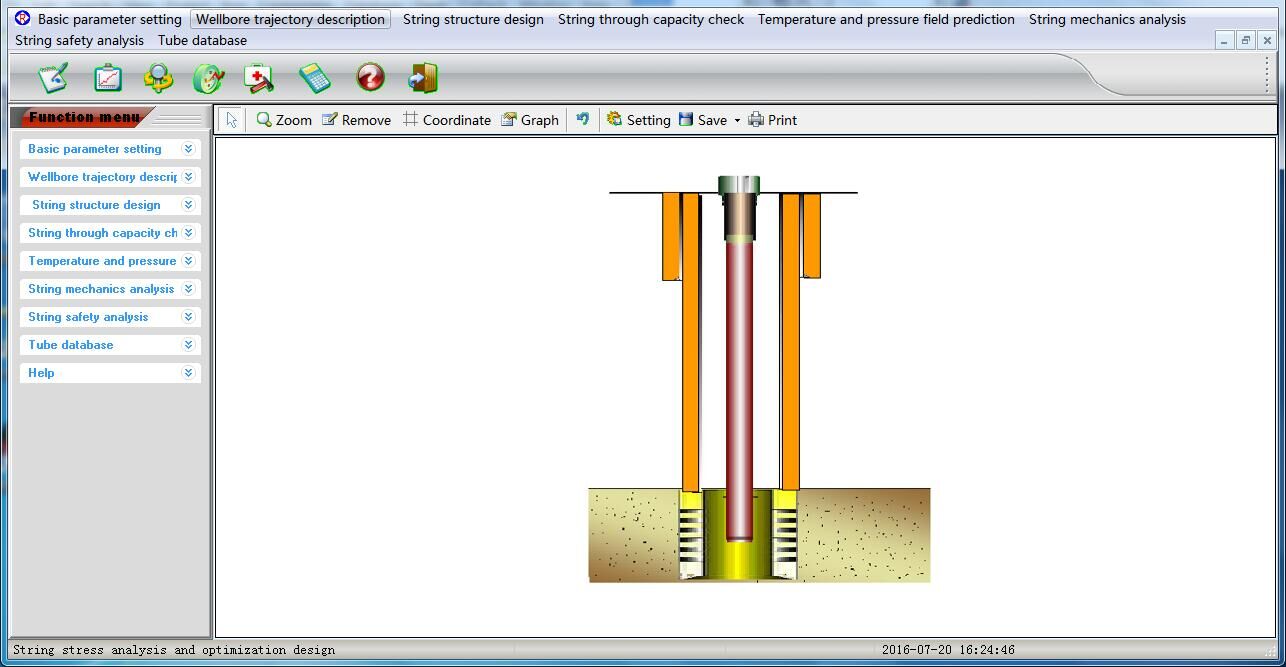

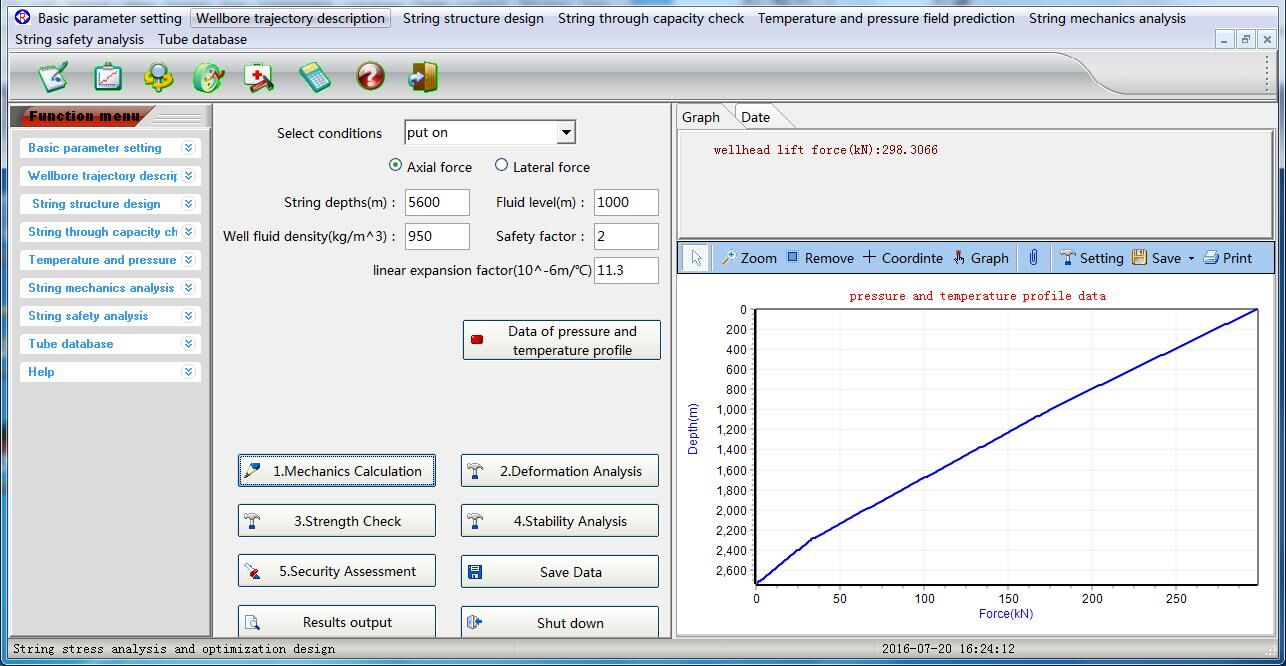

 Rally Str

String stress analysis and optimization design

Rally Str is a simulation software with strong maneuverability that is applicable to various conditions of string stress analysis. It mainly provides stress analysis and optimization design for tubing, casing and rod in oil or gas wells.

Main Functions

• Wellbore trajectory description
• Wellbore configuration drawing
• String structure design
• String through capacity verification
• String stress analysis
• String safety assessment
